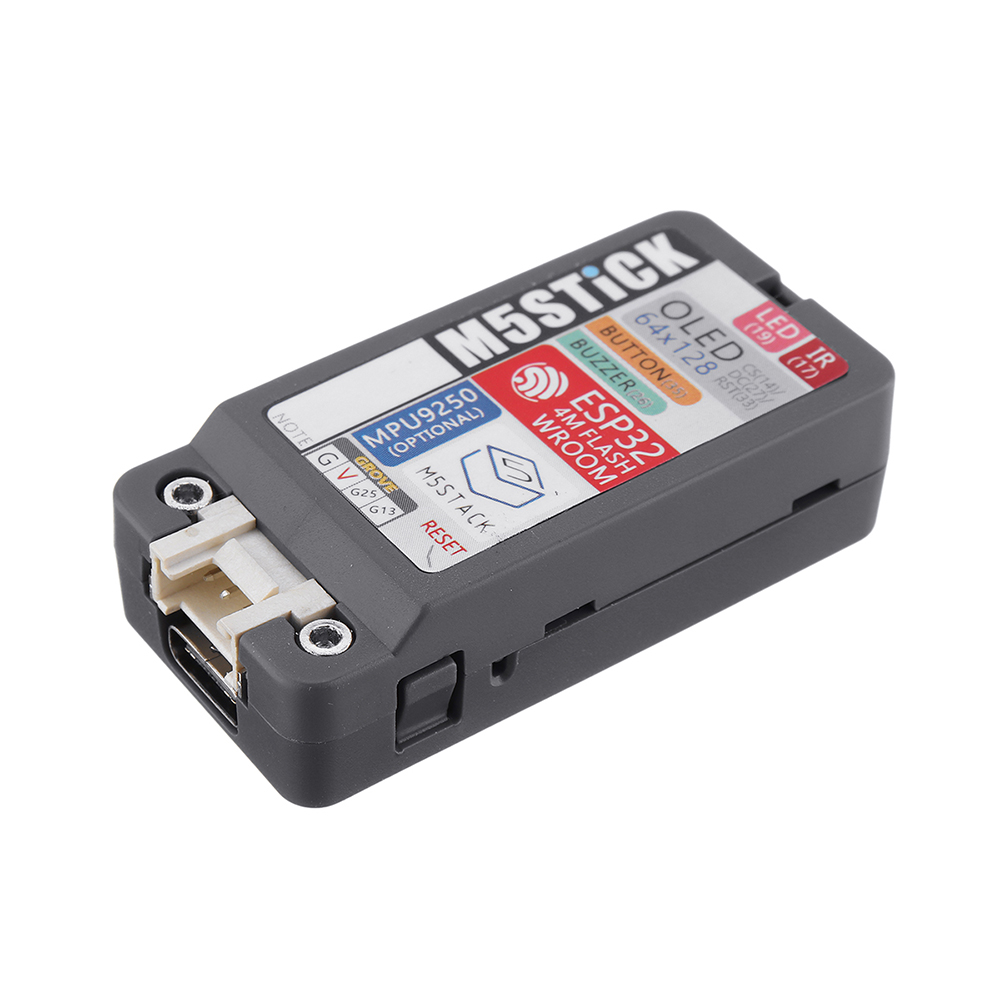

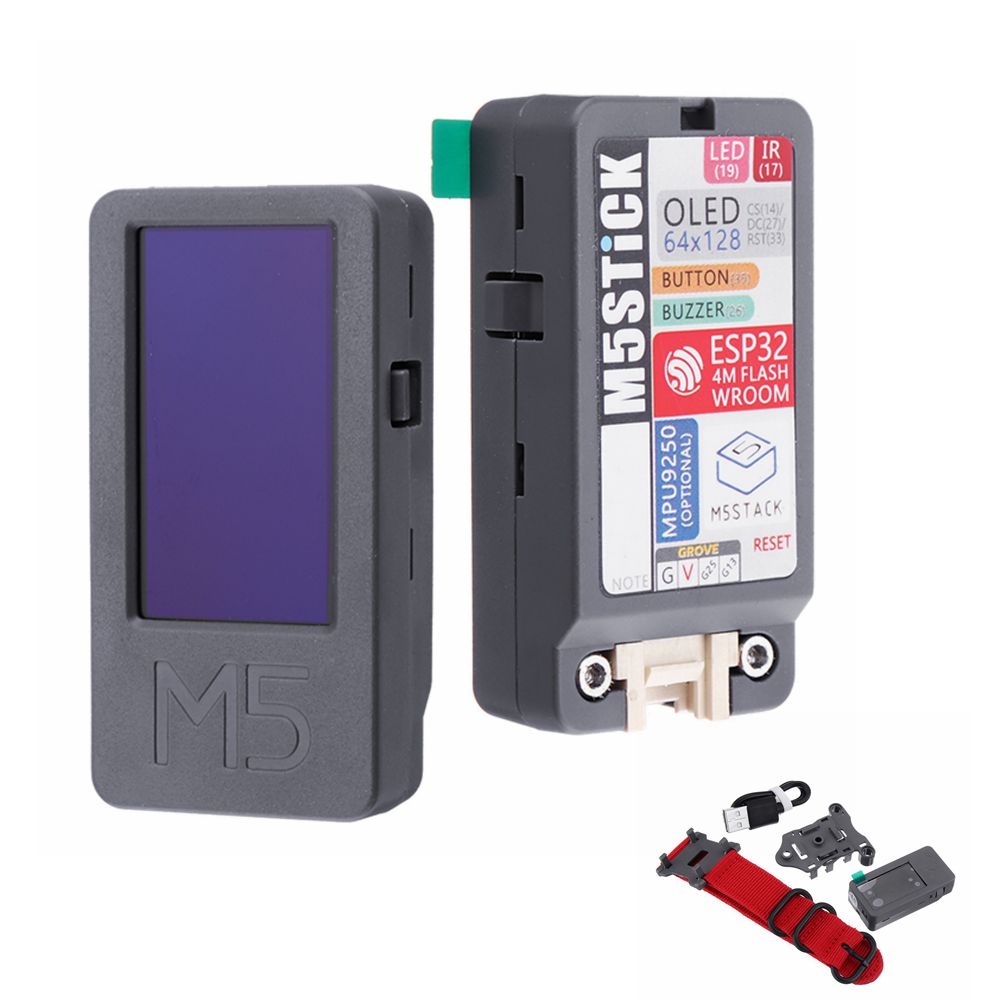

M5Stack M5Stick ESP32 Mini Development Board Kit 1.3Inch OLED Buzzer IR Transmitter Mpu9250 with Watch Belt

Availability: In stock

Regular Price: AUD65.00

Special Price AUD36.00

You Save: AUD29.00 (45%)

Quick Overview

Description:

M5Stick is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board.
What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototying in a very short time. It will takes away a lot of the pains form the development process.
M5stick is one of the core devices in M5Stack product series which is built in a continues growing hardware & software ecosystem. It has a lot of compatible modules & units, as well as the open source code & engineering community that will help you maximum your good in every step of the developing process.

Item Features:

- 5V DC power supply
- USB Type-C
- ESP32-based
- 4 MByte Flash
- 9-Axle IMU MPU9250(only gray type)
- Red LED
- Buzzer
- IR transmitter
- 1 Buttons, OLED(1.3 inch), 1 Reset
- 2.4G Antenna: Proant 440
- 80 mAh Lipo Battery
- Extendable Socket
- Grove Port
- Wearable & Wall mounted
- Development Platform UIFlow, MicroPython,  for Arduino

ESP32 Features:

- 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
- Integrated 520 KB SRAM
- Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
- Integrated dual mode Bluetooth
- Hall sensor
- 10x capactive touch interface
- 32 kHz crystal oscillator
- PWM/timer input/output available on every GPIO pin
- SDIO master/salve 50MHz
- SD-card interface support

Power on / off:

Power on: Click the reset button
Shutdown: Double the reset button

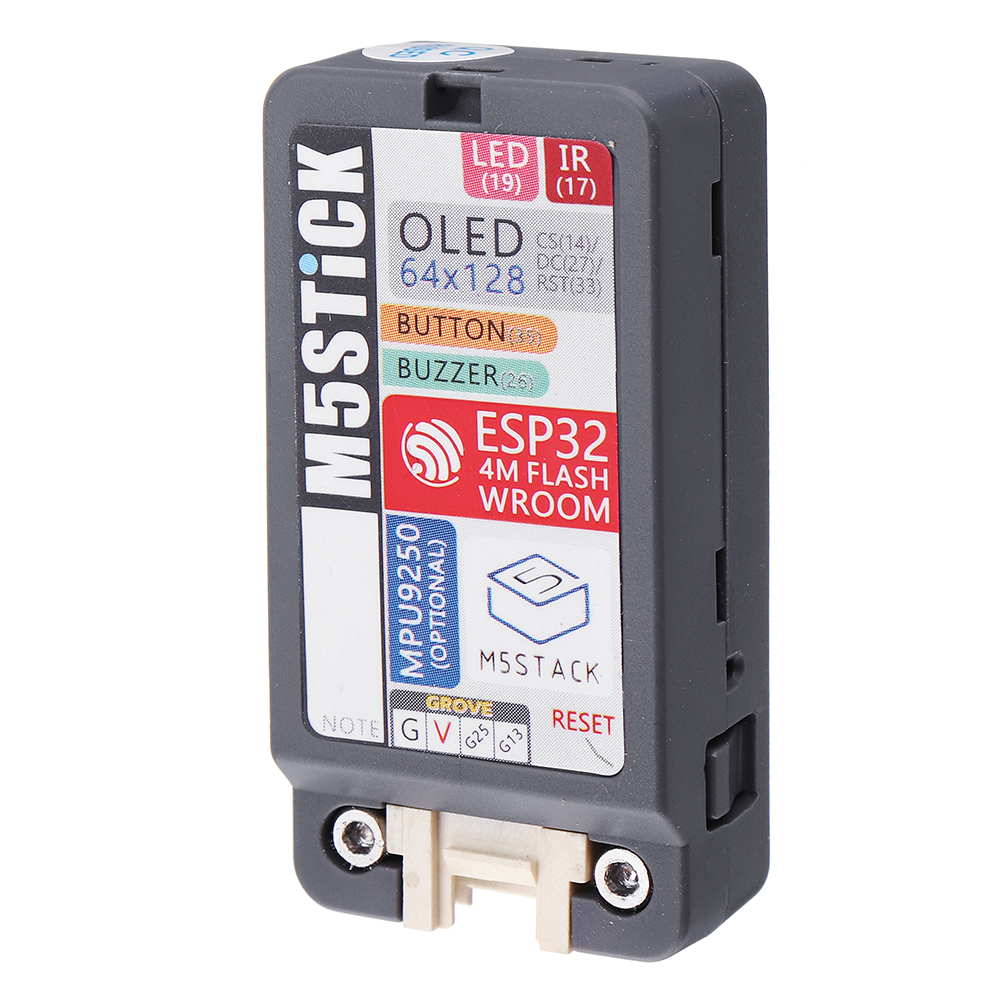

PinMap:

blue LED & BUTTON & BUZZER & IR Transmitter

ESP32GPIO17GPIO19GPIO26GPIO35
IR TransmitterPin
Blue LED Pin
BUZZER  Pin
BUTTON   Pin

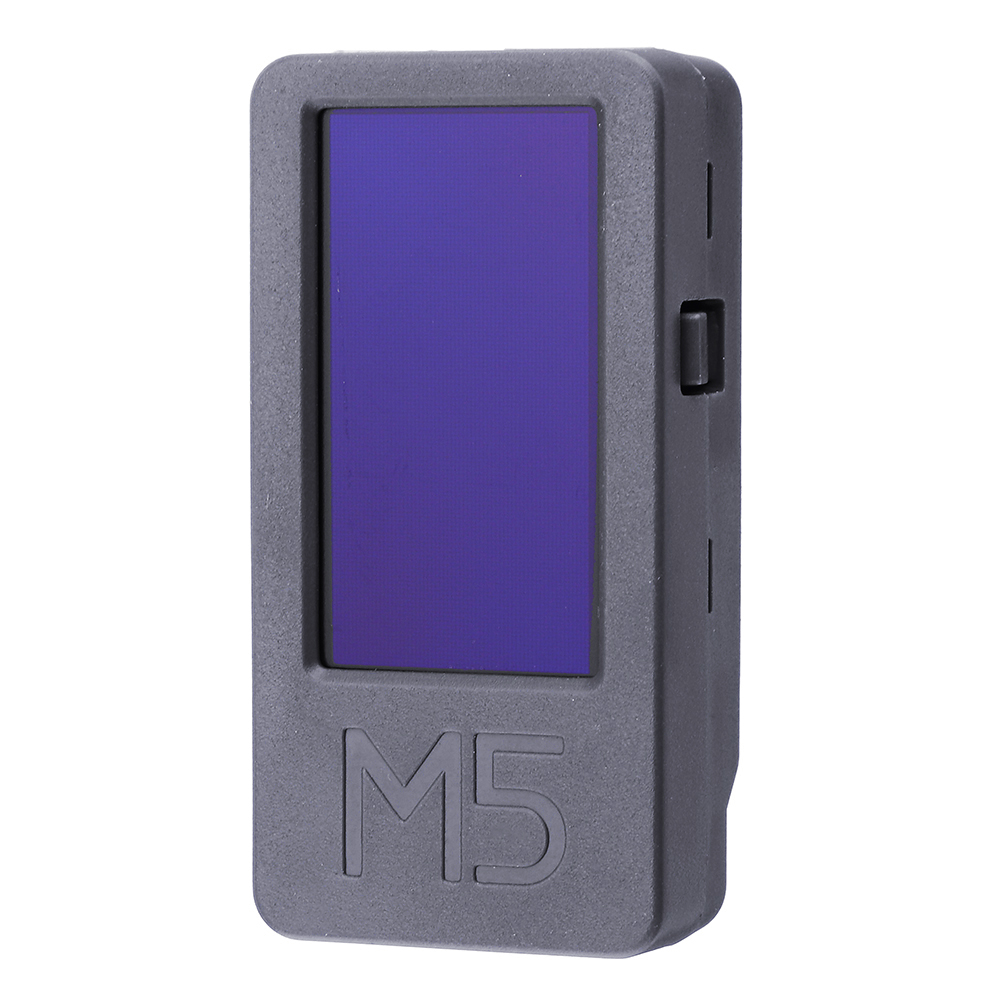

OLED Screen
ESP32GPIO14GPIO27GPIO33
OLEDCSDCRST

GROVE Port
ESP32GPIO13GPIO255VGND
GROVE PortSCLSDA5VGND

Gray type
ESP32GPIO22GPIO21
9-Axis posture sentsor: MPU9250SCLSDA

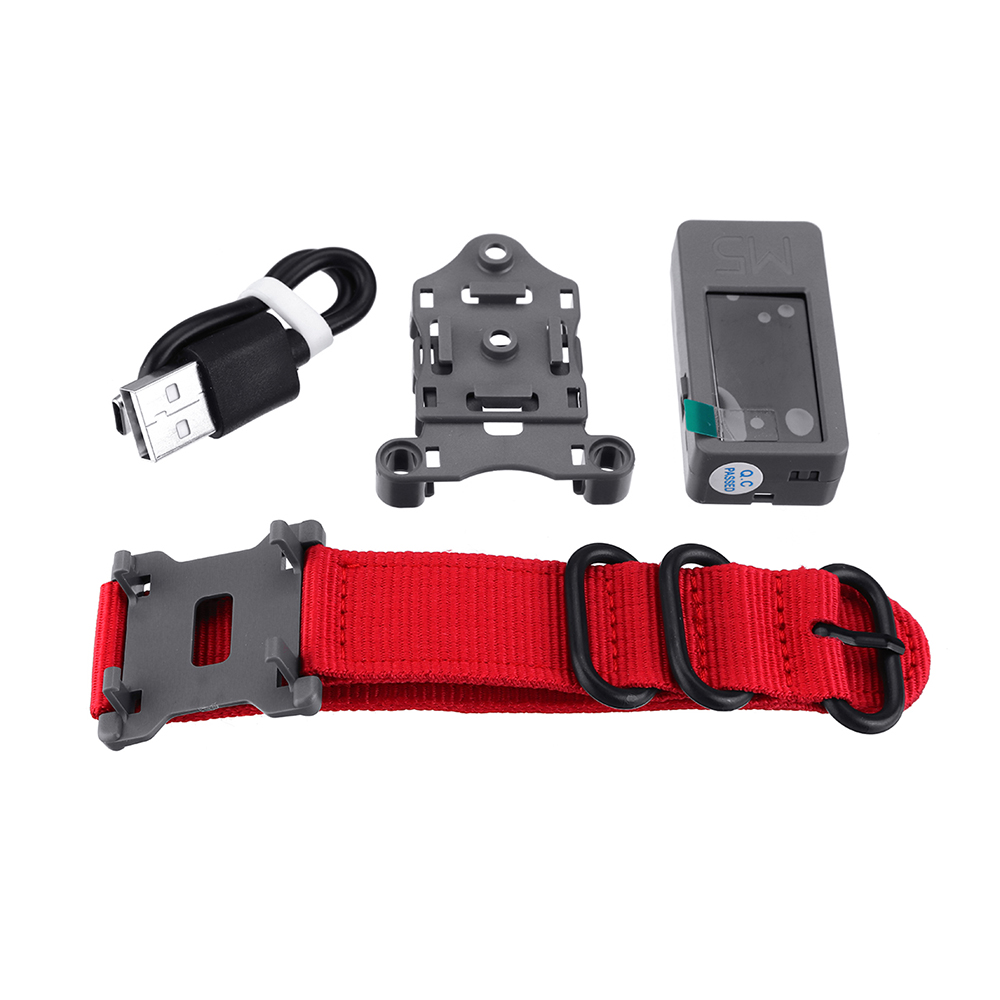

Package Included:

1 x M5Stick
1 x USB Type-C Cable
1 x Accessories: WATCH BELT, WALL/1515 and BRICK

If you want the complete schematic, please click here.

Example

UIFlow

Comparision Between Different Development Kits

  • For details click here

  • Download chart clickhere






















OR

Additional Information

SKU GI/BG/1506669
Weight 0.0640
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
