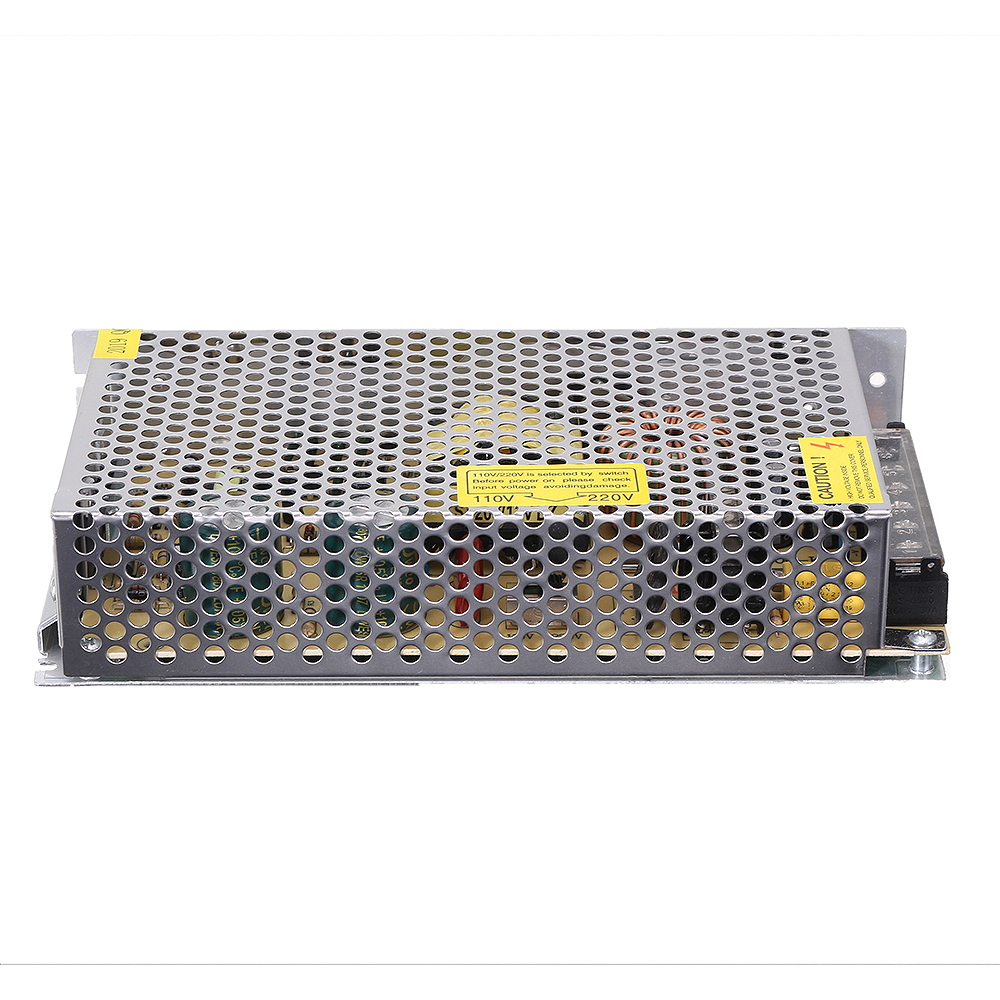

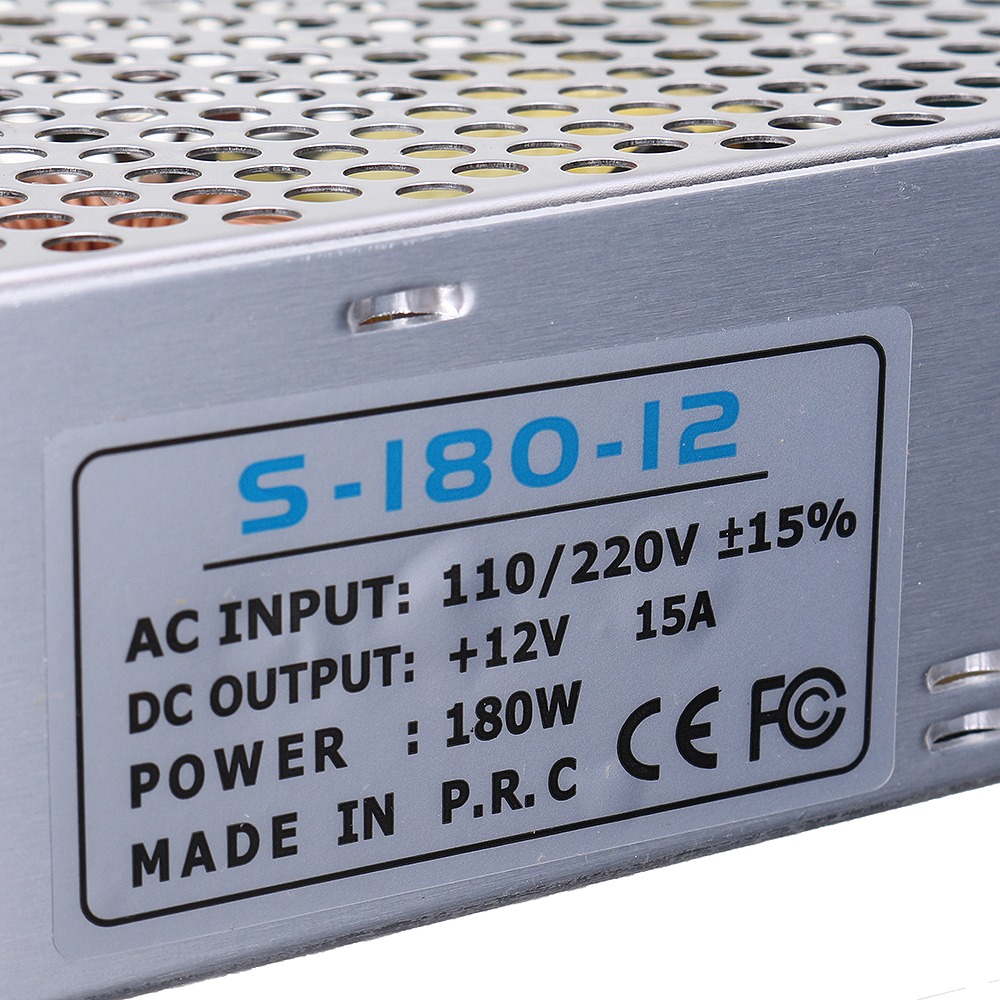

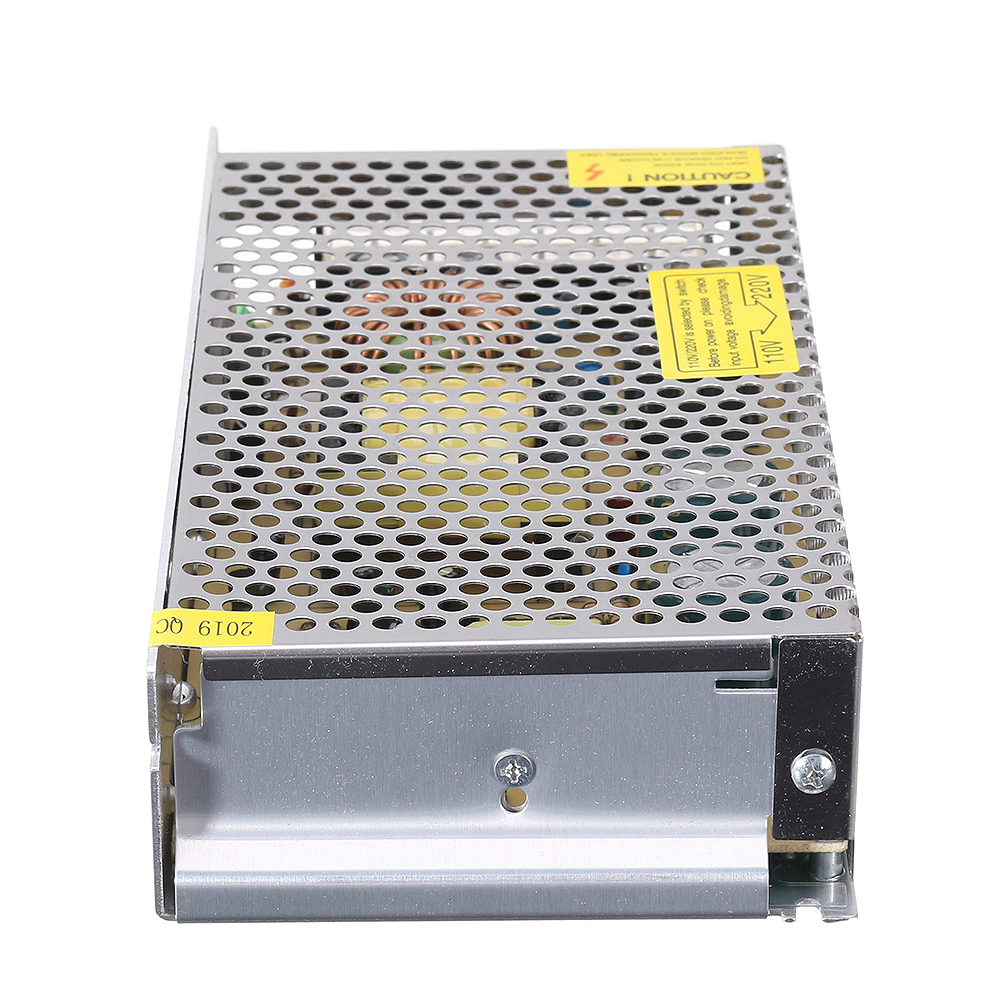

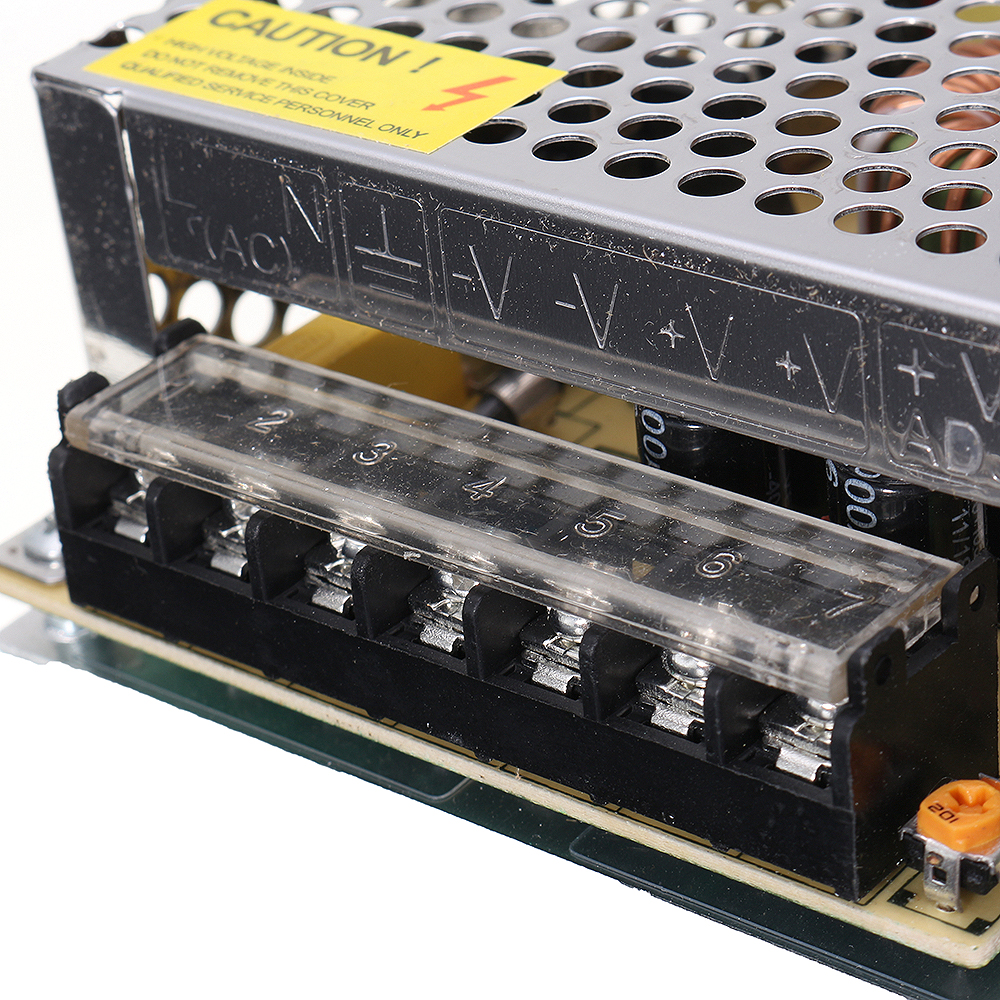

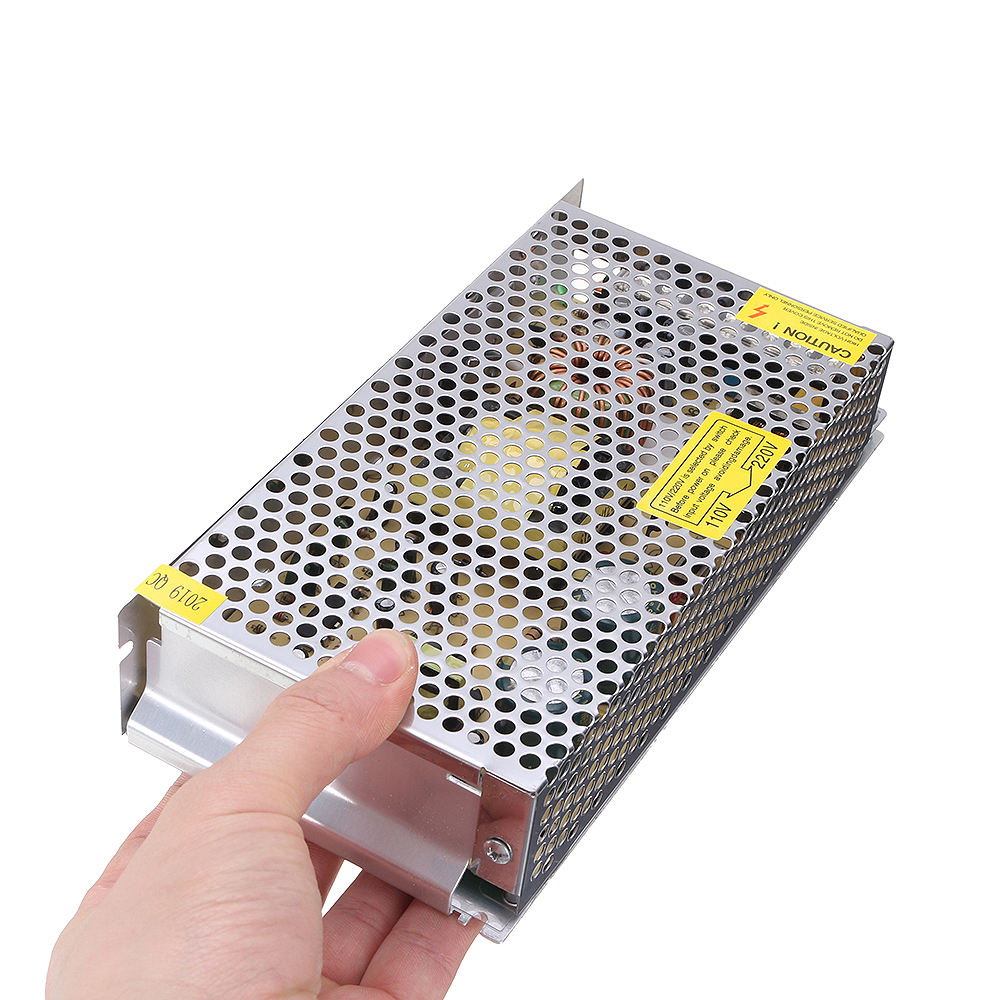

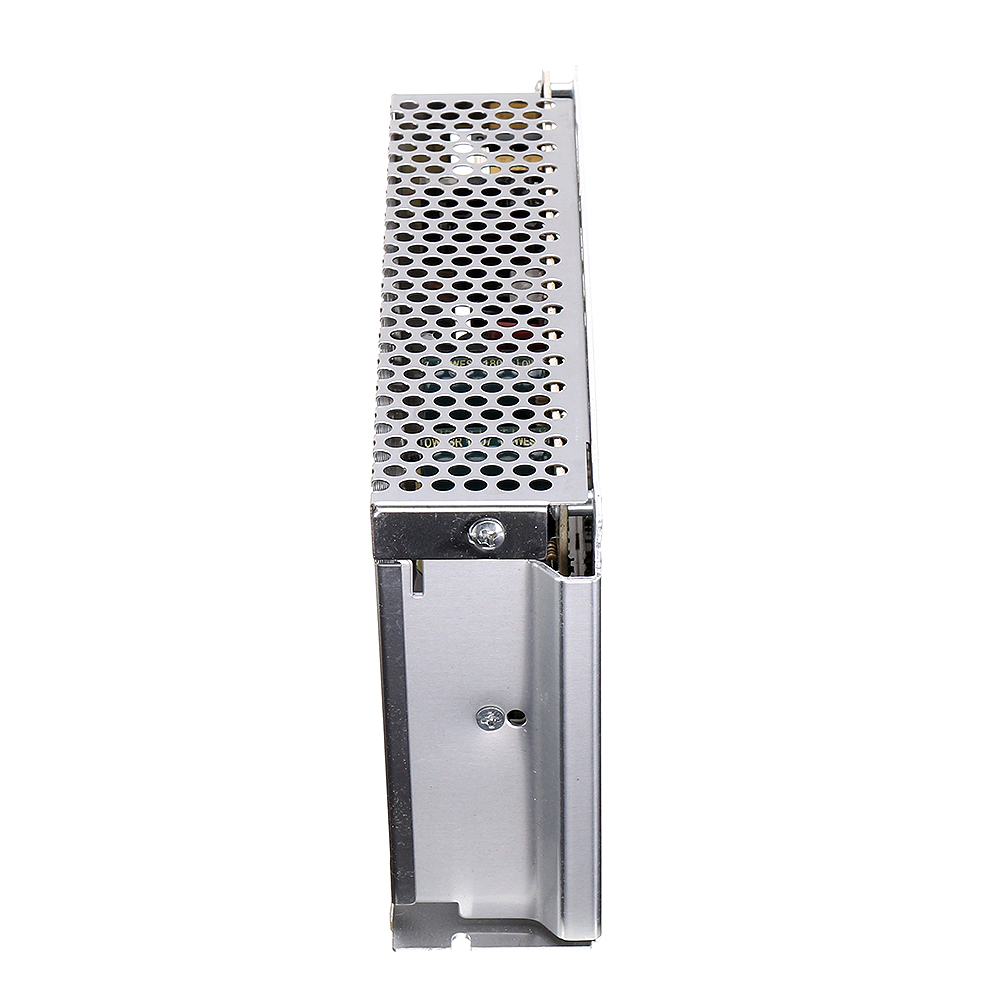

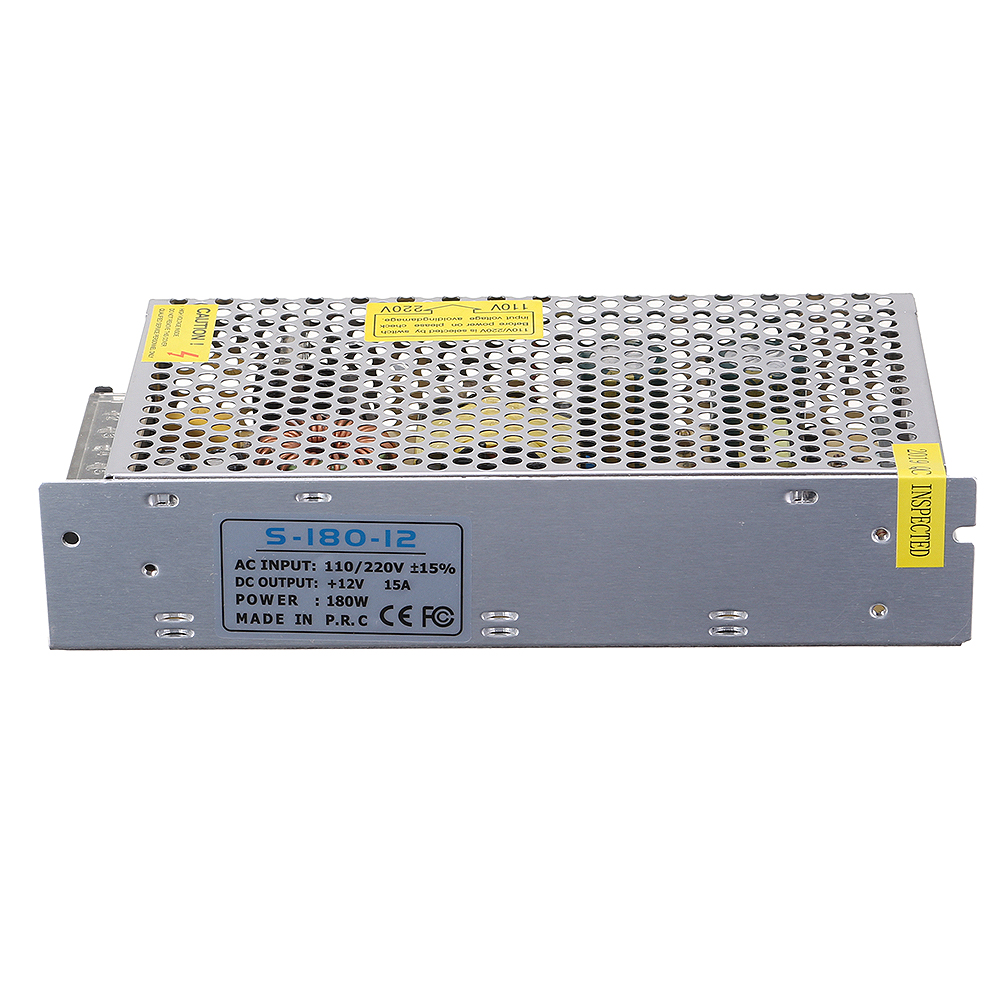

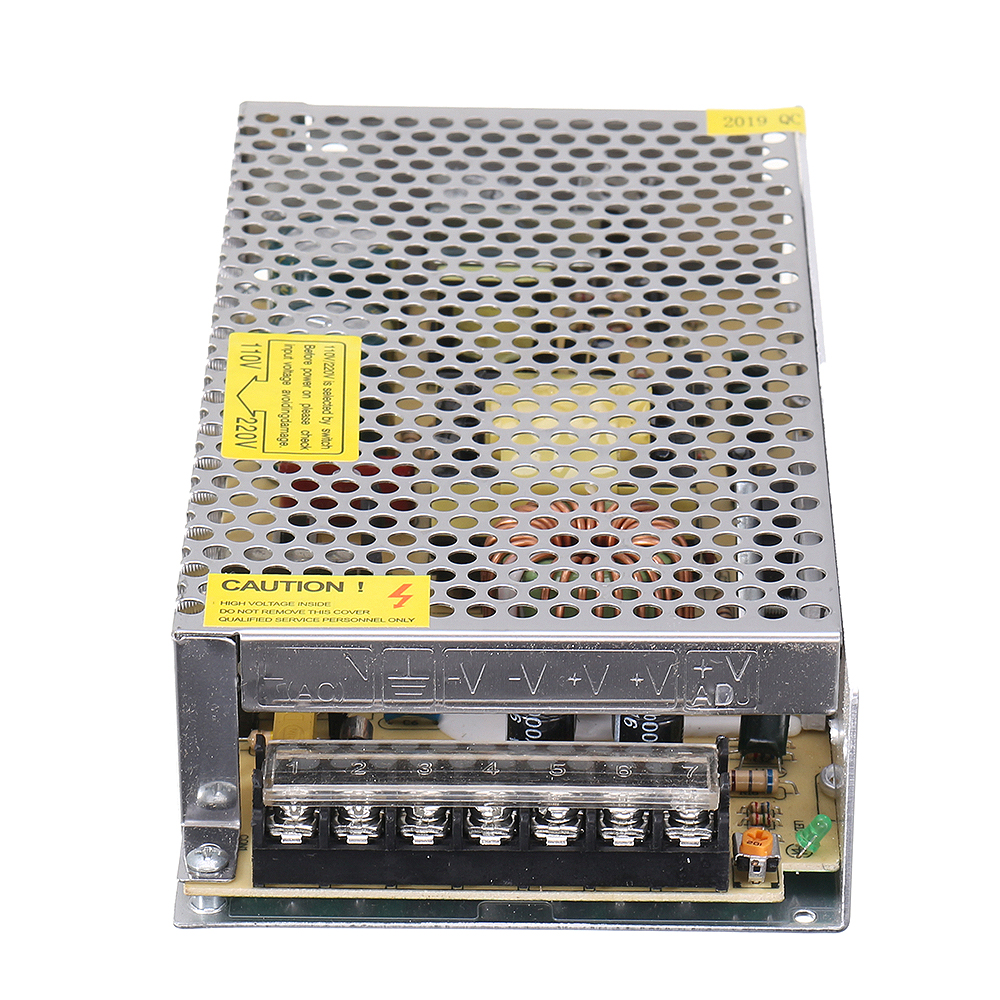

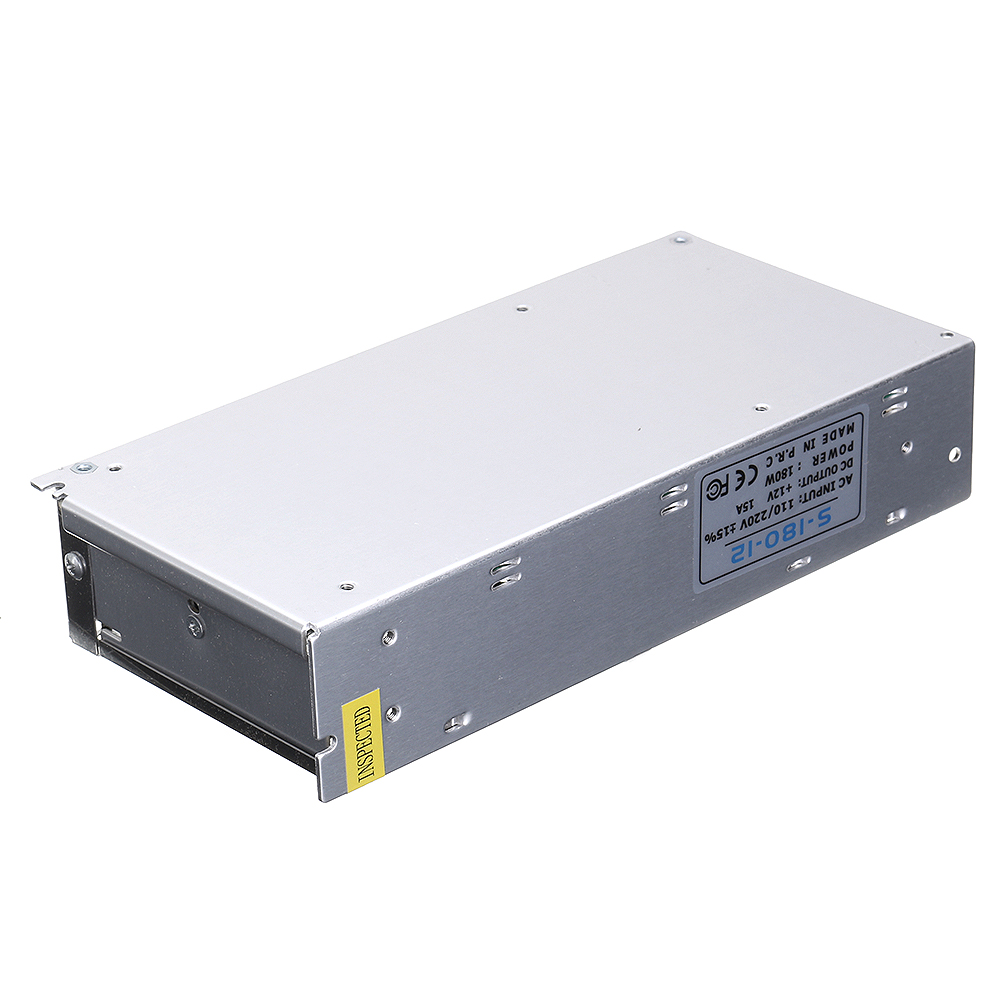

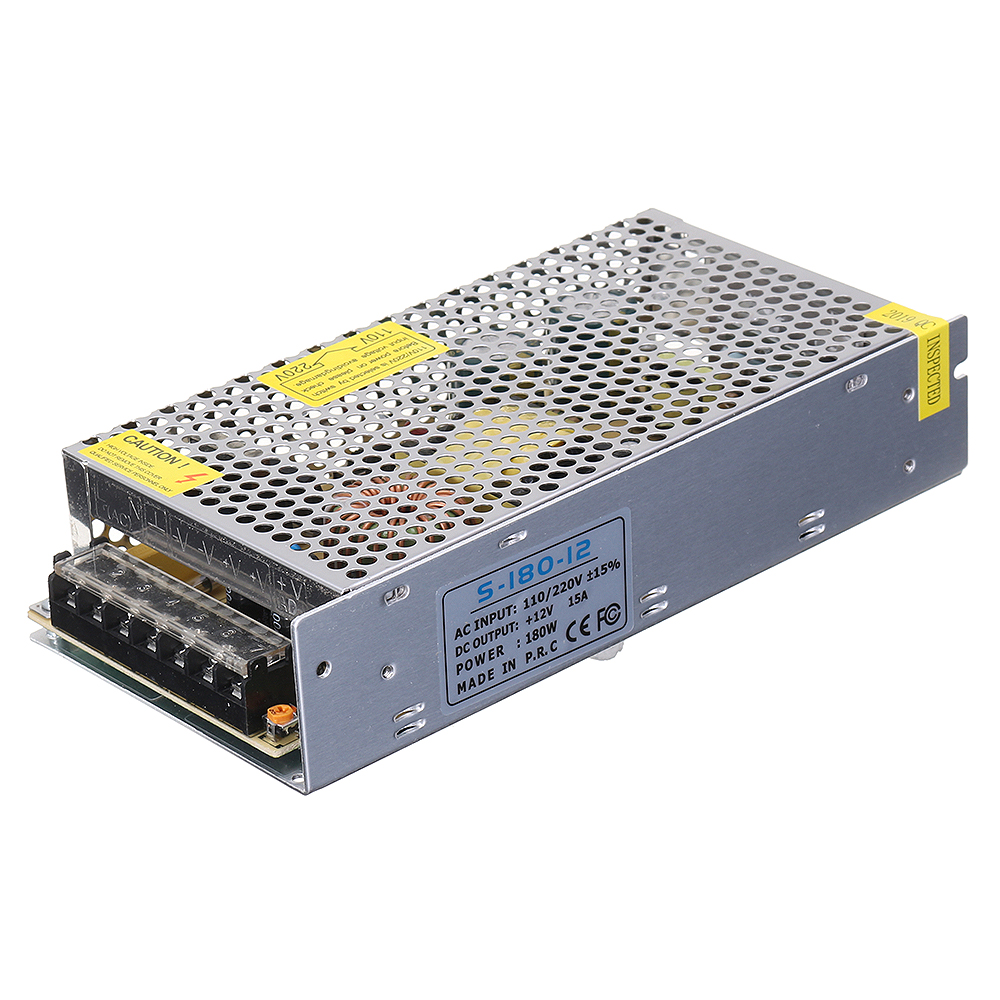

AC110V/220V to DC12V 15A 180W Switching Power Supply 198*98*42mm

Availability: In stock

Regular Price: AUD74.00

Special Price AUD41.00

You Save: AUD33.00 (45%)

Quick Overview

Parameter:

ProjectTechnical indicatorsRemarks
Basic requirements12V 15A 180WCommon
Dimensions198*98*42mm
Operating temperature -10°C to +50°C, 20% to 95% RH (no condensation)
Storage temperature -20°C to +85°C, 20% to 95% RH (no condensation)
Temperature Coefficient0.02~0.05%/°C
Heat dissipation methodNatural cooling
Rated voltage range220VACAC
Input voltage range170-260VAC
Input frequency range47~63HzExcept DC input
Input undervoltage protection115 to 150% intermittent mode
Input undervoltage recoveryAutomatic recovery
Input overvoltage protection115 to 150% intermittent mode
Input overvoltage recoveryAutomatic recovery
Electric shock≤1%Maximum input voltage full load
Machine efficiency≤0.5%Rated input full load
Output voltage range12V ± 0.5%Two channel output
Output current15ATwo channel output
Ripple and noise≤100 mVp-p
Rise Time≤50 ms
Output delay/
Voltage regulation≤0.5%
Load Regulation≤1%
Output overcurrent protectionCurrent drooping
Output short circuit protectionIGBT
Output overvoltage protectionSoft start protection
Insulation resistanceInput to output>30MΩ
Input to the earth>30MΩ
Output to the earth>30MΩ
Insulation resistance>50MΩ
MTBF100,000H

Feature:

1. International AC input range
2. High efficiency, low working temperature
3. Short circuit, overload, over-current protection
4. 100% fully load burn-in test
5. Built-in EMI filter, low ripple noise
6. Low cost, high reliability
7. CE and FCC approval

Description:

1. LED switching power supply using pulse width modulation (PWM) switching technology designed to ensure power supply stability and high efficiency.
2. Product interference, through the EMC testing, ripple ≤ 50MV.
3. Efficiency above 80%, temperature ≤ 25 °C.
4. LED switching power supply with overvoltage protection, short circuit protection, overload protection.
5. Constant current output to ensure the stability of the power, so that LED lighting effects better and live longer.
6. Products have the anti-interference ensures long-life LED strips, reducing the LED lighting decline.

Package includes:

1 x Power supply
